Plots structural shocks' conditional standard deviations

Plots of structural shocks' conditional standard deviations including their median and percentiles.

Usage

# S3 method for class 'PosteriorSigma'
plot(
  x,
  probability = 0.9,
  shock_names,
  col = "#ff69b4",
  main,
  xlab,
  mar.multi = c(1, 4.6, 0, 2.1),
  oma.multi = c(6, 0, 5, 0),
  ...
)

Arguments

x

an object of class PosteriorSigma obtained using the compute_conditional_sd() function containing posterior draws of conditional standard deviations of structural shocks.

probability

a parameter determining the interval to be plotted. The interval stretches from the 0.5 * (1 - probability) to 1 - 0.5 * (1 - probability) percentile of the posterior distribution.

shock_names

a vector of length N containing names of the structural shocks.

col

a colour of the plot line and the ribbon

main

an alternative main title for the plot

xlab

an alternative x-axis label for the plot

mar.multi

the default mar argument setting in graphics::par. Modify with care!

oma.multi

the default oma argument setting in graphics::par. Modify with care!

...

additional arguments affecting the summary produced.

See also

compute_conditional_sd

Author

Tomasz Woźniak wozniak.tom@pm.me

Examples

data(us_fiscal_lsuw)                                  # upload data
set.seed(123)                                         # set seed
specification  = specify_bsvar_sv$new(us_fiscal_lsuw) # specify model
#> The identification is set to the default option of lower-triangular structural matrix.
burn_in        = estimate(specification, 5)           # run the burn-in
#> **************************************************|
#> bsvars: Bayesian Structural Vector Autoregressions|
#> **************************************************|
#>  Gibbs sampler for the SVAR-SV model              |
#>    Non-centred SV model is estimated              |
#> **************************************************|
#>  Progress of the MCMC simulation for 5 draws
#>     Every draw is saved via MCMC thinning
#>  Press Esc to interrupt the computations
#> **************************************************|
posterior      = estimate(burn_in, 5)                 # estimate the model
#> **************************************************|
#> bsvars: Bayesian Structural Vector Autoregressions|
#> **************************************************|
#>  Gibbs sampler for the SVAR-SV model              |
#>    Non-centred SV model is estimated              |
#> **************************************************|
#>  Progress of the MCMC simulation for 5 draws
#>     Every draw is saved via MCMC thinning
#>  Press Esc to interrupt the computations
#> **************************************************|

# compute structural shocks' conditional standard deviations
sigma          = compute_conditional_sd(posterior)

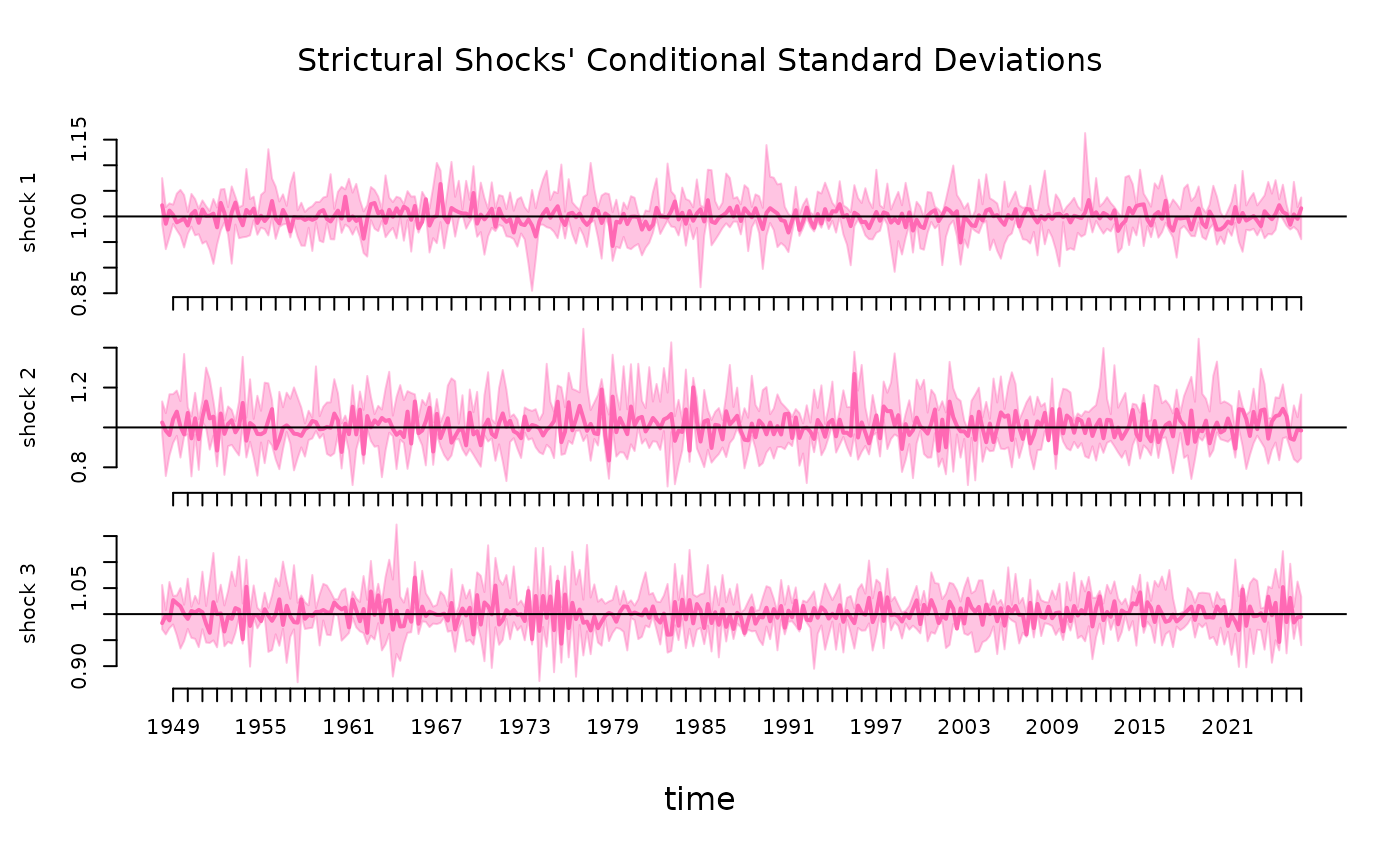

plot(sigma)                                            # plot conditional sds


# workflow with the pipe |>
############################################################
set.seed(123)
us_fiscal_lsuw |>
  specify_bsvar_sv$new(p = 1) |>
  estimate(S = 5) |>
  estimate(S = 5) |>
  compute_conditional_sd() |>
  plot()
#> The identification is set to the default option of lower-triangular structural matrix.
#> **************************************************|
#> bsvars: Bayesian Structural Vector Autoregressions|
#> **************************************************|
#>  Gibbs sampler for the SVAR-SV model              |
#>    Non-centred SV model is estimated              |
#> **************************************************|
#>  Progress of the MCMC simulation for 5 draws
#>     Every draw is saved via MCMC thinning
#>  Press Esc to interrupt the computations
#> **************************************************|
#> **************************************************|
#> bsvars: Bayesian Structural Vector Autoregressions|
#> **************************************************|
#>  Gibbs sampler for the SVAR-SV model              |
#>    Non-centred SV model is estimated              |
#> **************************************************|
#>  Progress of the MCMC simulation for 5 draws
#>     Every draw is saved via MCMC thinning
#>  Press Esc to interrupt the computations
#> **************************************************|
